uS5505

High Slew Rate, High Current Drive, and Rail to Rail Opration Amplifier

Datasheets PDF

General Description

The uS5505 contains four independent, high slew rate and high current drive rail to rail operation amplifiers. The uS5505 operates over a wide range of voltage 4.5V ~ 20V with very low bias current.

uS5505 provides peak output current to 600mA drive rail to rail output and fast slew rate to 50V/us. Other features include over-temperature protection, over-current protection, and output short protection. They provide complete protection for system application. The uS5505 is available in TSSOP-14L TSSOP-14L with heat sink pad and WQFN4x4-16L packages.

Pin Configuration & Typical Application Circuit


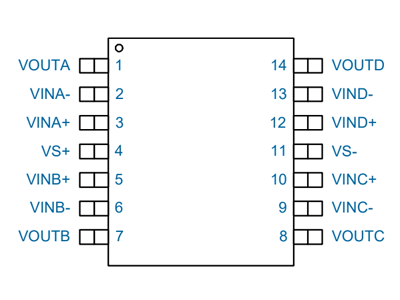

uS5505ATUC

uS5505ATAC

WQFN4X4-16L

Feature

  • 4.5V to 20V Input Voltage Range
  • 600mA Peak Output Current
  • Rail to Rail Output
  • 50V/uS Slew Rate
  • 30MHz Bandwidth
  • 1.2mA Quiescent Current Per Channel
  • Over Current Protection
  • Over Temperature Protection
  • Output Short Protection
  • TSSOP-14 Package
  • TSSOP-14 Package with Exposed Pad
  • WQFN4x4-16L Package
  • RoHS Compliant and Halogen Free

Application

  • TFT-LCD VCOM Buffer
  • TFT-LCD Gamma Buffer
