The uP8807 is a compact fast response low dropout regulator specifically designed to continuously deliver up to 600mA output current. Designed with a P-channel MOSFET series pass transistor, the uP8807 yields extremely low dropout voltage (e.g. 300mV at 600mA) and maintains very low quiescent current (70uA).

The uP8807 does not require a bypass capacitor, hence achieving the smallest PCB area. The uP8807 is designed and optimized to work with low-value, low-cost ceramic capacitors. Only a 1uF ceramic output capacitor is required for stable operation for any load conditions.

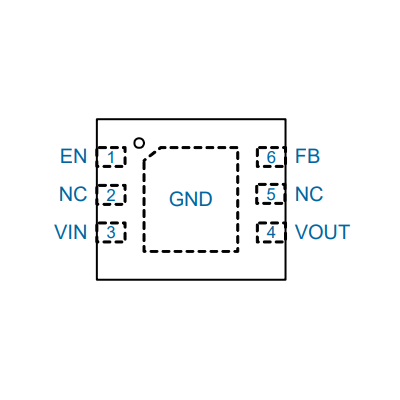

Other features include foldback overcurrent protection, quick soft start, and over temperature protection. The uP8807 is available in fixed output voltage from 0.8V to 3.3V with 0.1V per step or as an adjustable device with a 0.8V reference voltage. The device comes in various packages.

• Cellular and Cordless Phones.
• Bluetooth Portable Radios and Accessaries.
• Battery-Powered Equipment.
• Laptop, Palmtops, Notebook Computers.
• Hand-Held Instruments.
• PCMCIA Cards.
• Portable Information Appliances.
